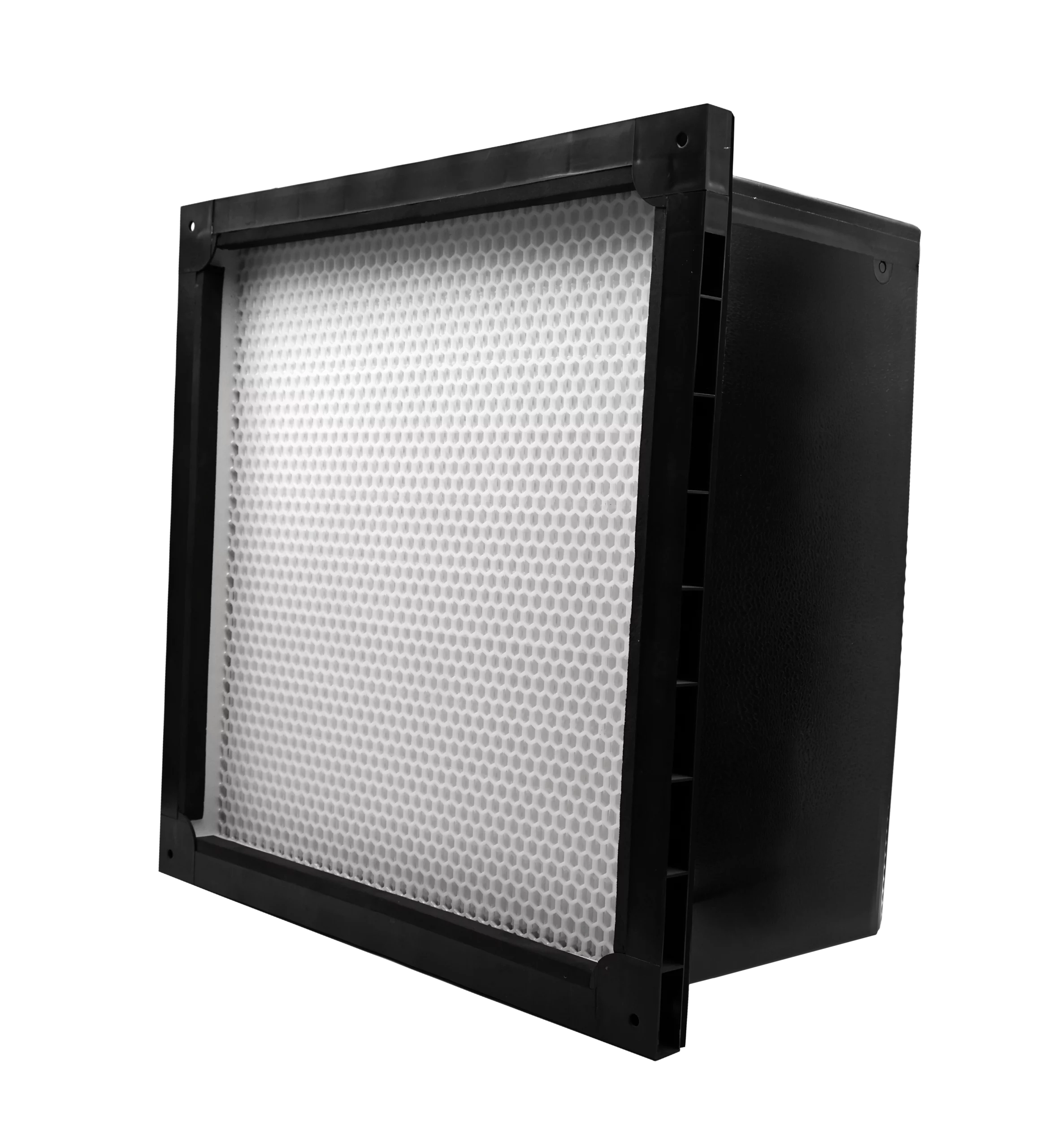

Cassette Filters
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features:
Made from F7 or H13 borosilicate micro-glass pleated paper with either kraft or aluminum separators, sealed into either a wood or galvanized steel housing. A neoprene gasket is applied to the clean air side.
Filter medium： High-strength micro-glass-fiber paper
Recommended final pressure drop： 625 Pa
Bursting pressure： >6,000 Pa
Thermal stability up to： 70°C
Moisture resistance： 100% rel. hum.
Frame： Halogen-free plastic; without header frame (D),
25 mm header frame (N), 20.5 mm header frame (U)
Seal ：Without (Z0), on request foamed-on PU seal (N1, N4)
Protection grids： On both sides, halogen-free plastic
Applications
High efficiency plastic filters offer maximized operational reliability and cost-efficiency for supply, exhaust
and recirculated air filtration in ventilation systems which have stringent requirements for clean air quality, particularly under critical on-site conditions, high air flow rates, where space is limited and when process safety
does not permit any compromises, e.g.
in intake air filtration for turbo machinery
in industrial processes (chemicals, pharmaceuticals,foods and beverages, optics, electronics, surface treatment, etc.)
in sophisticated air-conditioning applications (laboratories, libraries, museums, airports, office buildings, etc.)
as policing filters in dust removal applications.
| WxHxD
(Mm) |
Area
(M2) |
Airflow (CMH) | Initial Pressure(Pa) | Cut Off Particle Size(µm) | Efficiency
EN779:2012 |
Code |
|
592×287×292
|
7.5 |
2000 | 135 | 6 | M6 | TH-AFHP-M6-250101 |
| 2000 | 140 | 5 | F7 | TH-AFHP-F7-250101 | ||
| 2000 | 150 | 4 | F8 | TH-AFHP-F8-250101 | ||
| 2000 | 180 | 2.5 | F9 | TH-AFHP-F9-250101 | ||
| 2100 | 240 | 1 | E10 | TH-AFHP-E10-250101 | ||
| 1500 | 240 | 0.5 | E11 | TH-AFHP-E11-250101 | ||
| 11 | 1500 | 320 | E12 | TH-AFHP-E12-250101 | ||
|
592x490x292 |
14.5 | 3500 | 135 | 6 | M6 | TH-AFHP-M6-250102 |
| 14.5 | 3500 | 140 | 5 | F7 | TH-AFHP-F7-250102 | |
| 14.5 | 3500 | 150 | 4 | F8 | TH-AFHP-F8-250102 | |
| 14.5 | 3500 | 180 | 2.5 | F9 | TH-AFHP-F8-250102 | |
| 14.5 | 2700 | 240 | 0.5 | E11 | TH-AFHP-E11-250102 | |
| 19 | 2700 | 320 | E12 | TH-AFHP-E12-250102 | ||
|
592x592x292 |
18 | 4250 | 135 | 6 | M6 | TH-AFHP-M6-250103 |
| 18 | 4250 | 140 | 5 | F7 | TH-AFHP-F7-250103 | |
| 18 | 4250 | 150 | 4 | F8 | TH-AFHP-F8-250103 | |
| 21 | 4250 | 145 | 2.5 | F9 | TH-AFHP-F8-250103 | |
| 21 | 4250 | 210 | 1 | E10 | TH-AFHP-E10-250103 | |
| 21 | 3400 | 210 | 0.5 | E11 | TH-AFHP-E11-250103 | |
| 23 | 3400 | 320 | E12 | TH-AFHP-E12-250103 | ||
| 287x287x292 | 4.3 | 1000 | 140 | 5 | F7 | TH-AFHP-F7-250104 |
